Overview

The Milestone Webhook API provides a secure and structured RESTful interface for Milestone XProtect Systems to create Alerts directly within the Bearing Application.

Terminology Note: Milestone uses the term "Event" to refer to occurrences within its system. Bearing uses the term "Alert" to refer to actionable items added to the Alert Queue for processing. This webhook acts as a translator: it accepts Milestone's standard Event payload and maps those values to Bearing Alert values. Bearing does not use Milestone's model internally. A Milestone Event that has been filtered as potentially actionable is sent to the Bearing Alert Webhook and added as a Bearing Alert in the Alert Queue for processing.

Important: Customers should filter events on the Milestone side before sending to Bearing. Only events that represent a potential request or incident should be forwarded to this webhook. Do not send all events indiscriminately.

This API is specifically designed to receive and process Milestone Events, including:

External events triggered by integrations

Camera status changes

Motion detection alerts

System health notifications

Access control events

Other monitoring alerts

Benefits:

Automated alert creation

Intelligent CI (Configuration Item) matching with CMDB

Reduce manual data entry and response time

Ensure consistent event data context

Maintain forensic audit trail

Key Features:

Dedicated Milestone event processing

Automatic CI matching via vendor-specific ObjectId

Support for Milestone's native event structure

Direct integration with Milestone XProtect Corporate
Automatic priority mapping from Milestone priority levels

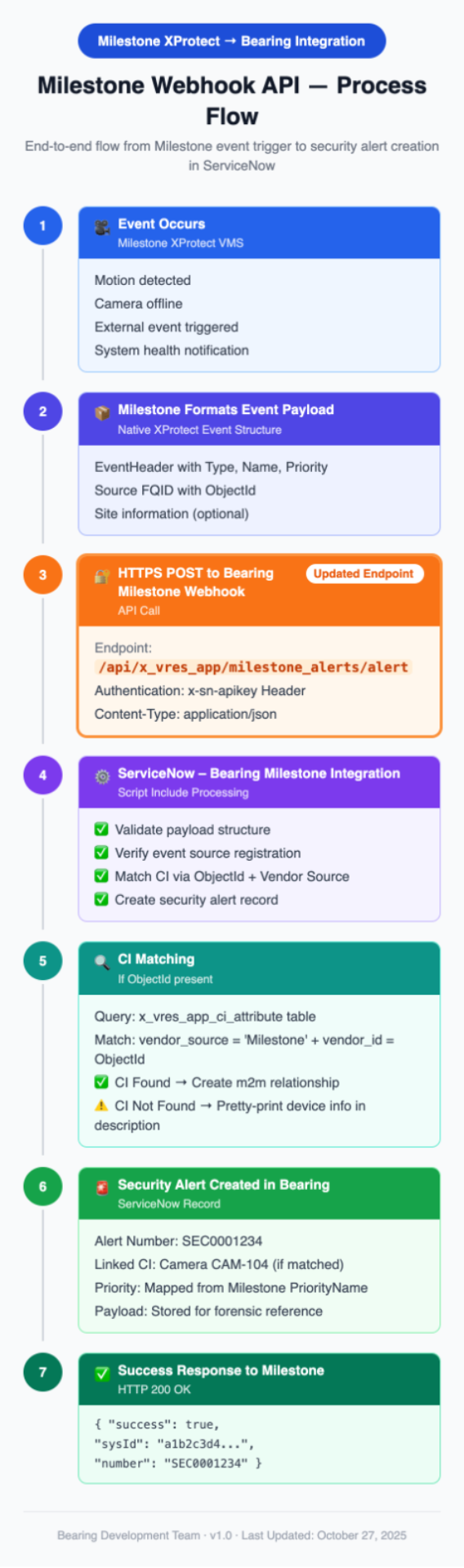

Process Flow Diagram

The following process illustrates the end-to-end flow from Milestone event trigger to successful alert creation in Bearing.

Process Steps

Event Trigger: An event occurs in the Milestone XProtect VMS (e.g., external event triggered, motion detected, camera status change)

Payload Formatting: Milestone formats the event data according to its native event structure, including EventHeader with Type, Name, Priority, and Source FQID with ObjectId

API Call: Milestone sends an HTTPS POST request to the Bearing webhook endpoint using the x-sn-apikey header

Payload Processing: The Milestone Integration Script Include validates the payload, verifies event source registration, and maps the Milestone Event data to a Bearing Alert

CI Matching: System attempts to match the device via ObjectId from the payload against the CI Attributes table using vendor_source + vendor_id

Alert Creation: A Bearing Alert record is created with all relevant data, including m2m relationship to CI if matched

Success Response: Bearing responds with a success status, alert sys_id, and alert number for Milestone to log

Security and Authentication

The Milestone Webhook API uses a static API key passed in a custom HTTP header for all requests.

How to Get an API Key

You must request an API key from your organization's ServiceNow administrator. The administrator will generate a key specifically for your Milestone system using the Bearing application's configuration panel.

Steps to Generate API Key:

Navigate to: Bearing > Security Operation Workspace > Configuration > System Definitions > Alerts API Setup

Generate a new API key for "Milestone" source system

Securely provide the generated key to your Milestone integration team

How to Use the API Key

Every request to the Milestone Webhook API must include the x-sn-apikey header containing your unique API key.

Header Name: x-sn-apikey

Value Format: YOUR_API_KEY

Example Header:

x-sn-apikey: 9af4e02c1b8a1a10f87743d8b24bcb1234abcd5678efgh

Important: Requests made without the x-sn-apikey header or with an invalid/revoked key will be rejected with a 401 Unauthorized error.

HTTPS Requirement

All requests must be made over HTTPS

HTTP requests will be rejected

TLS 1.2 or higher is required

Rate Limiting

Standard ServiceNow API rate limits apply

Recommended: Implement exponential backoff for failed requests

Recommended: Queue events on Milestone side during maintenance windows

Security Best Practices

Secure Key Storage: Store the API key securely in Milestone system configuration (encrypted if possible)

Restrict Access: Limit API key visibility to only necessary personnel

Rotate Keys: Implement regular API key rotation policy

Monitor API Activity: Review ServiceNow system logs regularly for unauthorized access attempts

Network Security: Use firewall rules to restrict webhook access to Milestone server IPs only

Revoke Compromised Keys: Immediately revoke and regenerate API keys if compromise is suspected

API Endpoint Details

Endpoint URL

POST https://your-servicenow-instance.service-now.com/api/x_vres_app/milestone_alerts/alert

Note: Replace "your-servicenow-instance" with the actual URL of your ServiceNow environment.

Example:
https://acme-corp.service-now.com/api/x_vres_app/milestone_alerts/alert

HTTP Method

POST only. GET, PUT, PATCH, and DELETE are not supported.

Required Headers

Content-Type: application/json

x-sn-apikey: YOUR_API_KEY

Optional Headers

Accept: application/json

User-Agent: Milestone-XProtect/version

Content Type

The API accepts only application/json content type. XML, form-data, and other formats are not supported.

Request Payload Description

The Milestone webhook accepts the native Milestone Event structure as provided by XProtect systems. This webhook functions as a translator: it receives the Milestone Event payload and maps the values to Bearing Alert fields internally. Bearing does not use Milestone's data model directly.

Payload Structure

The payload must contain an Event object with EventHeader and Source information, plus an optional Site object for server details.

Complete Example Payload

{

"Event": {

"EventHeader": {

"ID": "2388f93d-5cb0-48e0-9524-d8bb981e1629",

"Timestamp": "2022-11-26T15:59:39.2988877Z",

"Type": "System Event",

"Version": "1.0",

"Priority": 1,

"PriorityName": "High",

"Name": "External Event",

"Message": "External Event",

"Source": {

"Name": "Event High",

"FQID": {

"ServerId": {

"Type": "XPCO",

"Hostname": "ec2amaz-111k11j",

"Port": 80,

"Id": "2f04e7ee-2ee2-49d4-8415-de28dba7ef2e",

"Scheme": "http"

"ParentId": "2f04e7ee-2ee2-49d4-8415-de28dba7ef2e",

"ObjectId": "13860010-ded3-42ff-a2a9-cc6ba4a49636",

"FolderType": 0,

"Kind": "c9bdac3f-41dc-4afa-b057-61767a3914b7"

}

"MessageId": "0fcb1955-0e80-4fd4-a78a-db47ee89700c"

}

"Site": {

"ServerHostname": "ec2amaz-111k11j",

"AbsoluteUri": "http://ec2amaz-111k22j/",

"ServerType": "XPCO"

}

Field Definitions

Event.EventHeader (Required)

Field Name	Type	Required	Description
Type	String	Yes	Event type classification from Milestone (e.g., "System Event", "Motion Event", "Camera Event").
Name	String	Yes	Event name from Milestone (e.g., "External Event", "Motion Detected", "Camera Offline").
Message	String	No	Human-readable event message. Used as short_description if provided, otherwise defaults to "Milestone Alert".
Timestamp	ISO 8601 String	No	When the event occurred in Milestone system. Format: YYYY-MM-DDTHH:MM:SS.FFFFFFFZ. Stored as both event_time and detect_time.
Priority	Integer	No	Numeric priority level from Milestone (e.g., 1, 2, 3).
PriorityName	String	No	Priority name (e.g., "High", "Medium", "Low", "Critical"). Converted to lowercase and stored in the Bearing Alert. Defaults to "low" if omitted.
ID	String (GUID)	No	Unique event identifier from Milestone (for logging/debugging).
Version	String	No	Event schema version (currently "1.0").
MessageId	String (GUID)	No	Unique message identifier (for deduplication).

Event.EventHeader.Source (Required)

Field Name	Type	Required	Description
Name	String	No	Display name of the source device (e.g., "Camera 104", "NVR-Main"). Used in alert description if CI is not matched.

Event.EventHeader.Source.FQID (Required)

Field Name	Type	Required	Description
ObjectId	String (GUID)	Yes	Critical for CI matching. Unique identifier for the device in Milestone. This is matched against vendor_id in x_vres_app_ci_attribute table.
ParentId	String (GUID)	No	Parent object identifier in Milestone hierarchy.
Kind	String (GUID)	No	Object kind/type identifier.
FolderType	Integer	No	Folder type classification.

Event.EventHeader.Source.FQID.ServerId (Optional)

Field Name	Type	Required	Description
Hostname	String	No	Milestone server hostname. Used in alert description if CI is not matched.
Type	String	No	Server type (e.g., "XPCO" for XProtect Corporate). Used in alert description.
Id	String (GUID)	No	Unique server identifier.
Port	Integer	No	Server port number.
Scheme	String	No	Protocol scheme (e.g., "http", "https").

Site (Optional)

Field Name	Type	Required	Description
ServerHostname	String	No	Milestone Management Server hostname.
AbsoluteUri	String	No	Full URI to Milestone server.
ServerType	String	No	Server type (e.g., "XPCO"). Used in alert description if CI is not matched.

Minimal Required Payload

The absolute minimum payload structure required for successful processing:

{

"Event": {

"EventHeader": {

"Type": "System Event",

"Name": "External Event",

"Source": {

"FQID": {

"ObjectId": "13860010-ded3-42ff-a2a9-cc6ba4a49636"

}

Payload Validation

The webhook validates the following structure:

Event object exists

Event.EventHeader object exists

Event.EventHeader.Source object exists

Event.EventHeader.Type field is present

Event.EventHeader.Name field is present

Event.EventHeader.Source.FQID.ObjectId field is present

Validation Errors:

Missing any required object: 400 Bad Request

Missing Type or Name: 400 Bad Request - Missing required fields 'Type' or 'Name' in EventHeader

Missing ObjectId: 400 Bad Request - Missing required field 'ObjectId' in Source.FQID

CI Matching Strategy

The Milestone webhook uses vendor-specific CI matching via the Milestone ObjectId.

Matching Process

Primary Strategy: Vendor Source + Vendor ID

The system searches for Configuration Items (CIs) using the ObjectId from the Milestone payload:

Search: x_vres_app_ci_attribute

WHERE:

- vendor_source = sys_id of "Milestone" event source

- vendor_id = ObjectId from payload

CI Matching Behavior

Scenario	Result	Description Field	CI Relationship
CI Found	Success	"Milestone event 'Message' was triggered for the associated asset."	m2m link created in x_vres_app_m2m_alert_ci
CI Not Found	Alert Created	Pretty-printed device details with ObjectId, Hostname, Server Type	No m2m relationship
No ObjectId	Alert Created	Generic description	No m2m relationship

Example: CI Found

Input:

{

"Event": {

"EventHeader": {

"Message": "Motion Detected",

"Source": {

"FQID": {

"ObjectId": "13860010-ded3-42ff-a2a9-cc6ba4a49636"

}

Result:

CI matched via ObjectId

M2M relationship created

Description: "Milestone event 'Motion Detected' was triggered for the associated asset."

Example: CI Not Found

Input:

{

"Event": {

"EventHeader": {

"Source": {

"Name": "Camera NVR-Unknown-104",

"FQID": {

"ObjectId": "99999999-0000-0000-0000-000000000000",

"ServerId": {

"Hostname": "milestone-server-01"

}

"Site": {

"ServerType": "XPCO"

}

Result:

CI not found

Alert created with pretty-printed info

Description:
Camera NVR-Unknown-104 could not be found:
Hostname: milestone-server-01
Server Type: XPCO
Vendor Source: Milestone
Vendor ID: 99999999-0000-0000-0000-000000000000

Data Requirements

Event Source Registration

Before sending events, ensure the Milestone event source is registered in ServiceNow.

Table: x_vres_app_event_source

Field	Value
name	"milestone" (lowercase, exact match required)
source_name	"Milestone" (display name)

How to Register:

Navigate to: x_vres_app_event_source table in ServiceNow

Click New

Set Name: milestone and Source Name: Milestone

Click Submit

CI Attribute Configuration

For successful CI matching, populate the CI Attributes table.

Table: x_vres_app_ci_attribute

Field	Description	Example
vendor_source	Reference to x_vres_app_event_source (Milestone)	sys_id of Milestone event source
vendor_id	ObjectId from Milestone XProtect	"13860010-ded3-42ff-a2a9-cc6ba4a49636"
configuration_item	Reference to actual CI in cmdb_ci	sys_id of Camera CI

How to Configure:

Navigate to: x_vres_app_ci_attribute table

Click New for each device

Set Vendor Source (Milestone), Vendor ID (ObjectId), and Configuration Item (CI from CMDB)

Click Submit

Pro Tip: Export ObjectIds from Milestone XProtect Management Client and bulk-import CI attributes via CSV or Integration Hub.

Response Handling

Success Response (200 OK)

Indicates the Bearing Alert was successfully created.

HTTP Status: 200 OK

Response Body:

{

"success": true,

"message": "Bearing alert created successfully from Milestone event.",

"sysId": "a1b2c3d4e5f6g7h8i9j0k1l2m3n4o5p6",

"number": "SEC0001234"

}

Response Fields:

Field	Type	Description
success	Boolean	Always true for successful requests
message	String	Human-readable success message
sysId	String	ServiceNow sys_id of the created Bearing Alert record
number	String	Alert number (e.g., "SEC0001234") for reference

Error Responses

400 Bad Request - Invalid Payload

Cause: Payload structure is invalid or missing required fields.

Response Body:

{

"success": false,

"message": "Invalid payload: Missing required fields 'Type' or 'Name' in EventHeader.",

"error": "Error: Invalid payload: Missing required fields 'Type' or 'Name' in EventHeader."

}

Common Causes:

Missing Event or EventHeader object

Missing Type field

Missing Name field

Missing Source.FQID.ObjectId field

401 Unauthorized - Authentication Failed

Cause: Invalid or missing API key.

Response Body:

{

"success": false,

"message": "Unauthorized. Invalid API Key."

}

Common Causes:

Missing x-sn-apikey header

Invalid API key value

Revoked or expired API key

API key not registered for Milestone source system

500 Internal Server Error - Configuration Issue

Cause: Event source not configured or server-side processing error.

Response Body:

{

"success": false,

"message": "The event source 'milestone' is not configured in the system. Please add it to the 'x_vres_app_event_source' table.",

"error": "Error: The event source 'milestone' is not configured in the system."

}

Common Causes:

Milestone event source not registered in x_vres_app_event_source table

Database insert failed

Unexpected server error

Response Status Code Summary

Status Code	Meaning	Action Required
200 OK	Success	None - Bearing Alert created successfully
400 Bad Request	Invalid payload structure	Fix payload format and required fields
401 Unauthorized	Invalid or missing API key	Verify x-sn-apikey header and key validity
500 Internal Server Error	Configuration or server error	Check event source configuration, contact admin

Implementation Examples

cURL Example

Complete payload with all fields:

curl -X POST \

https://your-instance.service-now.com/api/x_vres_app/milestone_alerts/alert \

-H 'Content-Type: application/json' \

-H 'x-sn-apikey: YOUR_API_KEY_HERE' \

-d '{

"Event": {

"EventHeader": {

"ID": "2388f93d-5cb0-48e0-9524-d8bb981e1629",

"Timestamp": "2022-11-26T15:59:39.2988877Z",

"Type": "System Event",

"Version": "1.0",

"Priority": 1,

"PriorityName": "High",

"Name": "External Event",

"Message": "External Event",

"Source": {

"Name": "Event High",

"FQID": {

"ServerId": {

"Type": "XPCO",

"Hostname": "ec2amaz-111k11j",

"Port": 80,

"Id": "2f04e7ee-2ee2-49d4-8415-de28dba7ef2e",

"Scheme": "http"

"ParentId": "2f04e7ee-2ee2-49d4-8415-de28dba7ef2e",

"ObjectId": "13860010-ded3-42ff-a2a9-cc6ba4a49636",

"FolderType": 0,

"Kind": "c9bdac3f-41dc-4afa-b057-61767a3914b7"

}

"MessageId": "0fcb1955-0e80-4fd4-a78a-db47ee89700c"

}

"Site": {

"ServerHostname": "ec2amaz-111k11j",

"AbsoluteUri": "http://ec2amaz-111k22j/",

"ServerType": "XPCO"

}

Minimal payload with required fields only:

curl -X POST \

https://your-instance.service-now.com/api/x_vres_app/milestone_alerts/alert \

-H 'Content-Type: application/json' \

-H 'x-sn-apikey: YOUR_API_KEY_HERE' \

-d '{

"Event": {

"EventHeader": {

"Type": "System Event",

"Name": "External Event",

"Source": {

"FQID": {

"ObjectId": "13860010-ded3-42ff-a2a9-cc6ba4a49636"

}

Milestone XProtect Configuration

To configure Milestone XProtect to send events to this webhook:

Get API Key from ServiceNow:

Navigate to: Bearing > Security Operation Workspace > Configuration > System Definitions > Alerts API Setup

Generate API key for "Milestone" source system

Copy the generated API key

Open Milestone XProtect Management Client

Navigate to: Rules and Events > Notifications

Create New HTTP Notification:

Name: Bearing Webhook

URL: https://your-instance.service-now.com/api/x_vres_app/milestone_alerts/alert

Method: POST

Content-Type: application/json

Custom Headers: Header Name = x-sn-apikey, Header Value = Your API Key

Configure Notification Body: Use the native Milestone event structure (automatically includes Event, EventHeader, Source FQID with ObjectId, and Site information)

Create Rule:

Trigger: Select desired event types (e.g., Motion Detected, Camera Offline, External Event). Filter to only those events that represent a potential request or incident.

Action: Send HTTP Notification and select "Bearing Webhook"

Test the Integration:

Trigger a test event from a camera or device

Check Bearing for the created Alert

Verify CI matching in the alert's "Affected CIs" related list

Troubleshooting

1. "Invalid payload: Missing required fields 'Type' or 'Name' in EventHeader"

Cause: The payload structure is incomplete or incorrectly formatted.

Solution:

Verify the payload includes Event.EventHeader.Type

Verify the payload includes Event.EventHeader.Name

Check that the JSON is properly formatted

Ensure Content-Type header is set to application/json

Example of correct structure:

{

"Event": {

"EventHeader": {

"Type": "System Event",

"Name": "External Event"

}

2. "Invalid payload: Missing required field 'ObjectId' in Source.FQID"

Cause: The ObjectId field is missing from the Source FQID, which is required for CI matching.

Solution:

Ensure Milestone is configured to include the full FQID structure

Verify Event.EventHeader.Source.FQID.ObjectId exists in payload

Check Milestone event configuration includes device identifiers

Example of correct structure:

{

"Event": {

"EventHeader": {

"Source": {

"FQID": {

"ObjectId": "13860010-ded3-42ff-a2a9-cc6ba4a49636"

}

3. "The event source 'milestone' is not configured in the system"

Cause: The Milestone event source has not been registered in ServiceNow.

Solution:

Navigate to: x_vres_app_event_source table

Click New

Create record: Name = milestone (lowercase, exact), Source Name = Milestone

Click Submit

Retry the webhook request

4. 401 Unauthorized Error

Cause: API key is missing or invalid.

Solution:

Verify the x-sn-apikey header is included in the request

Check that the API key value is correct (no extra spaces or line breaks)

Confirm the API key is valid and not revoked

Ensure the API key is registered for the "Milestone" source system

Regenerate API key if necessary via Bearing > Security Operation Workspace > Configuration > System Definitions > Alerts API Setup

5. Alert Created but CI Not Matched

Cause: ObjectId from Milestone does not match any vendor_id in the CI Attributes table.

Step 1: Verify ObjectId is in Payload

Check the alert's payload field in Bearing

Look for Event.EventHeader.Source.FQID.ObjectId

Copy the ObjectId value

Step 2: Check CI Attributes Table

Navigate to: x_vres_app_ci_attribute

Filter by Vendor Source = Milestone and Vendor ID = ObjectId from payload

If no results found, the CI attribute is missing

Step 3: Create CI Attribute Record

Click New

Set Vendor Source = Milestone, Vendor ID = ObjectId from Milestone, Configuration Item = corresponding CI from CMDB

Click Submit

Step 4: Test Again

Trigger another event from the same device

Verify CI is now matched and m2m relationship is created

Pro Tip: Bulk-import CI attributes by exporting device ObjectIds from Milestone XProtect Management Client and creating a CSV import file.

6. Alerts Created with Pretty-Printed Device Info Instead of CI Links

Cause: This is expected behavior when CI matching fails.

Expected Description Format:

Device Name could not be found:

Hostname: hostname

Server Type: server type

Vendor Source: Milestone

Vendor ID: ObjectId

Solution:

This is not an error - the alert was created successfully

Use the Vendor ID (ObjectId) from the description to create a CI Attribute record (see Issue 5)

Future events from this device will be automatically matched once CI attribute is configured

7. Milestone Not Sending Events to Bearing

Cause: Milestone XProtect rule/notification configuration issue.

Step 1: Verify HTTP Notification Configuration

Open Milestone XProtect Management Client

Navigate to: Rules and Events > Notifications

Find your Bearing notification and verify: URL is correct, Method is POST, Content-Type is application/json, and x-sn-apikey header is configured correctly

Step 2: Check Rule Configuration

Navigate to: Rules and Events > Rules

Verify the rule is Enabled, the event trigger is correctly configured, and the action includes "Send HTTP Notification" to Bearing

Step 3: Test Notification

In Milestone, right-click the notification

Select Test Notification

Check if alert appears in Bearing

If test fails, enable debug logging under Tools > Options > Logging and review logs

Step 4: Check Network Connectivity

curl -X POST https://your-instance.service-now.com/api/x_vres_app/milestone_alerts/alert \

-H "Content-Type: application/json" \

-H "x-sn-apikey: YOUR_API_KEY_HERE" \

-d '{"Event":{"EventHeader":{"Type":"Test","Name":"Test","Source":{"FQID":{"ObjectId":"test"}}}}}'

Debugging Tips

1. Enable Debug Logging in ServiceNow

Navigate to: System Logs > All. Filter by: Source = "x_vres_app.MilestoneIntegration". Look for error messages and stack traces.

Common log messages:

"Found matching CI with sys_id: [sys_id] for ObjectId: [ObjectId]" - CI matched successfully

"No CI found with vendor_source sys_id='[sys_id]' (Milestone) and vendor_id='[ObjectId]'" - CI not found

"Error processing Milestone webhook: [error message]" - Processing error

2. Verify Event Source Configuration

Navigate to: x_vres_app_event_source. Filter: name = "milestone". Verify record exists with correct name (lowercase).

3. Check CI Attribute Data

Navigate to: x_vres_app_ci_attribute. Check for records with vendor_source = Milestone event source sys_id, vendor_id = ObjectId from Milestone, and configuration_item = valid CI sys_id.

4. Review Full Alert Record

Navigate to: x_vres_app_security_event. Open the created alert and check fields: source (should reference "Milestone" event source), payload (raw JSON from Milestone), description (CI link message or pretty-printed device info), and Related Lists > Affected CIs (should show m2m relationship if CI matched).

Best Practices

Filter Before Sending: Only send Milestone Events to Bearing that represent a potential request or incident. Configure Milestone rules to filter events before forwarding to this webhook.

Register Event Source First: Always create the "milestone" event source before sending test events. Verify the name field is lowercase and exact.

Pre-populate CI Attributes: Extract ObjectIds from Milestone XProtect before going live. Bulk-import CI attributes to ensure a high match rate from day 1.

Implement Retry Logic: Configure Milestone with retry attempts for failed notifications. Use exponential backoff for transient failures.

Monitor Integration Health: Set up Bearing alerting for webhook failures. Review Milestone notification logs regularly. Track CI match rate and investigate unmatch patterns.

Test Before Production: Create test event sources and test alerts. Verify CI matching with known devices. Test error scenarios (invalid payloads, auth failures).
Document ObjectId Mapping: Maintain a mapping document of Milestone ObjectIds to Bearing CIs. Include device names, locations, and purposes for easy troubleshooting.

Getting Help

If you continue to experience issues:

Collect Diagnostic Information:

Error message from Milestone notification logs

Sample payload (sanitized, remove sensitive data)

ServiceNow system logs (System Logs > All, filter by MilestoneIntegration)

Event source configuration screenshot

CI attribute records for the affected device

Check Documentation:

Review this document for matching requirements

Check Bearing application documentation for CI data model

Contact Support:

Milestone Support: For issues with event generation and HTTP notification configuration

ServiceNow Administrator: For permission issues, event source configuration, and CI matching

Bearing Support: For questions about the Bearing application and webhook functionality

Appendix: Database Tables Reference

Table	Purpose
x_vres_app_security_event	Bearing Alert records
x_vres_app_event_source	Registered event sources (Milestone, Genetec, etc.)
x_vres_app_ci_attribute	CI attributes for vendor-specific matching
x_vres_app_m2m_alert_ci	Many-to-many relationships between alerts and CIs
cmdb_ci	Configuration Items (cameras, NVRs, servers, etc.)
